314.27(A)(1) Vertical Surface Outlets.

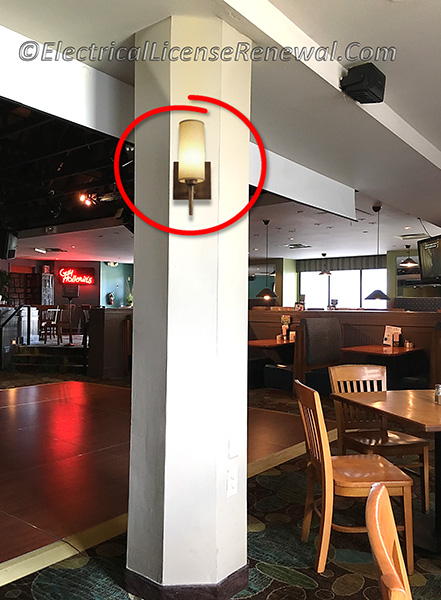

Some may say that the column is not a wall but all will agree that this luminaire is mounted on a vertical surface.
Click to Enlarge
Some may say that the column is not a wall but all will agree that this luminaire is mounted on a vertical surface.

Code Change Summary: The heading of the subsection and supporting text was changed to apply to vertical surface outlets.

The previous 2011 code language in Section 314.27(A)(1) only applied to luminaires installed over a box on a wall. Well, what about a column? Is a column or a post considered a wall? If not, then this code section doesn’t apply.

Now, Section 314.27(A)(1) provides specific rules for boxes used to support luminaires installed on a vertical surface.

Below is a preview of the NEC®.  See the actual NEC® text at NFPA.ORG for the complete code section. Once there, click on the “free access” tab and select the applicable year of NFPA 70 (National Electrical code).

2011 Code language:

314.27(A)(1) Wall Outlets. Boxes used at luminaire or lampholder outlets in a wall shall be marked on the interior of the box to indicate the maximum weight of the luminaire that is permitted to be supported by the box in the wall, if other than 23 kg (50 lb).

Exception: A wall-mounted luminaire or lampholder weighing not more than 3 kg (6 lb) shall be permitted to be supported on other boxes or plaster rings that are secured to other boxes, provided the luminaire or its supporting yoke, or the lampholder, is secured to the box with no fewer than two No. 6 or larger screws.

2014 Code Language:

314.27(A)(1) Vertical Surface Outlets. Boxes used at luminaire or lampholder outlets in or on a vertical surface shall be identified and marked on the interior of the box to indicate the maximum weight of the luminaire that is permitted to be supported by the box if other than 23 kg (50 lb).

Exception: A vertically mounted luminaire or lampholder weighing not more than 3 kg (6 lb) shall be permitted to be supported on other boxes or plaster rings that are secured to other boxes, provided that the luminaire or its supporting yoke, or the lampholder, is secured to the box with no fewer than two No. 6 or larger screws.
