NFPA 70E Article 100 Definitions.

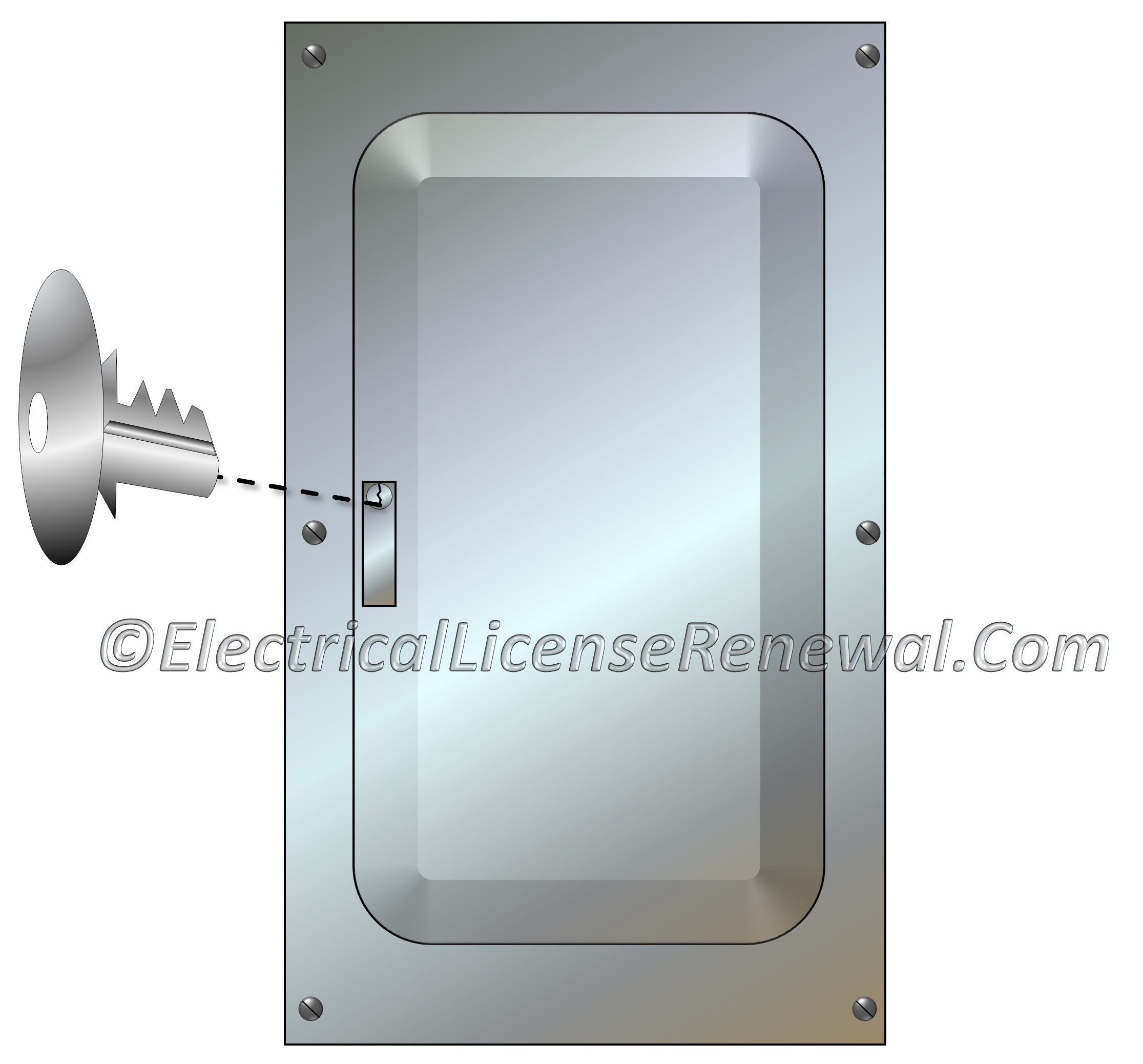

Many panelboard cabinets have a lockable cover.
Click to Enlarge
Many panelboard cabinets have a lockable cover.

The following definitions can be found in Article 100 of NFPA 70E:

Below is a sample of NFPA 70E. For the complete section, see the actual NFPA 70E text at NFPA.ORG. Once there, click on the free access link to NFPA 70E.

Accessible (as applied to equipment). Admitting close approach; not guarded by locked doors, elevation, or other effective means.

Accessible (as applied to wiring methods). Capable of being removed or exposed without damaging the building structure or finish or not permanently closed in by the structure or finish of the building.

Accessible, Readily (Readily Accessible). Capable of being reached quickly for operation, renewal, or inspections without requiring those to whom ready access is requisite to take actions such as to use tools (other than keys), to climb over or under, to remove obstacles, or to resort to portable ladders, and so forth.

Informational Note: Use of keys is a common practice under controlled or supervised conditions and a common alternative to the ready access requirements under such supervised conditions as provided in NFPA 70, National Electrical Code.

Did You Like This? Let Us Know With A Like! Thanks!

NFPA 70E Article 100 Definitions.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

Refer to the definitions and the image.

Which of the following is true?

A: The circuit breakers behind the locked cabinet cover are only “accessible”.
B: The circuit breakers behind the locked cabinet cover are “readily accessible”.
C: The circuit breakers behind the locked cabinet cover are NOT “readily accessible”.
D: Keys and locking covers are not permitted for panelboards.
