NC AMENDMENT 210.8(D)

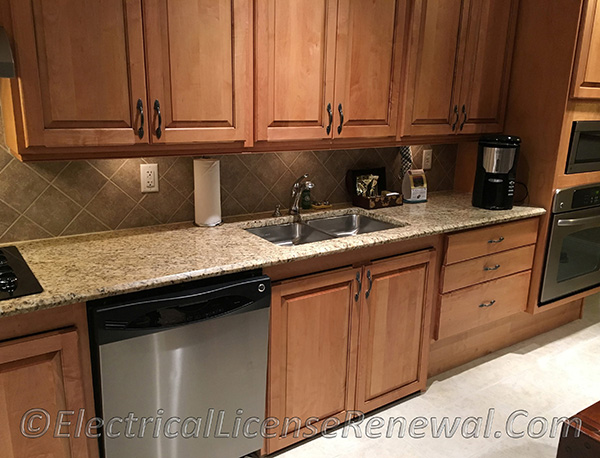

In NC, GFCI protection is not required for the kitchen dishwasher.
Click to Enlarge
In NC, GFCI protection is not required for the kitchen dishwasher.

Amend NEC® 2017, page 59:

(D) Kitchen Dishwasher Branch Circuit.

Deleted.

ELR commentary: In the 2017 NEC®, Section 210.8(D) requires GFCI protection for “outlets” that supply dishwashers installed in dwelling unit locations. This would include any dwelling unit dishwasher whether hard-wired or cord and plug connected since the NEC® definition of an outlet can also include a hard-wired connection.

In North Carolina, this requirement has been deleted. GFCI protection in a dwelling unit kitchen is required for 15 and 20-amp, single phase, 125-volt receptacles that serve the counter or where such receptacles are located within 6 feet from the top inside edge of the sink. See NEC® 210.8.

Did You Like This? Let Us Know With A Like! Thanks!

NC AMENDMENT 210.8(D)

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

Which of the following is true of dwelling unit kitchen dishwasher branch circuits installed in NC?

A: GFCI protection is required for a receptacle installed for the dishwasher.
B: GFCI protection is required for a hard-wired connection for the dishwasher.
C: No GFCI protection is required for the dishwasher.
D: AFCI protection is required for the dishwasher.
