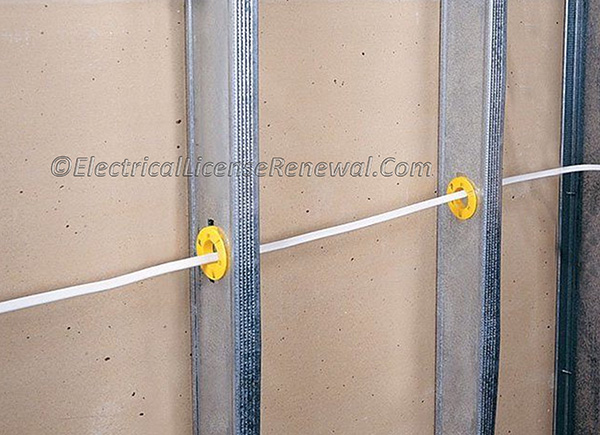

WAC 296-46B-334 Nonmetallic-sheathed cable.

Click to Enlarge

WAC 296-46B-334 Nonmetallic-sheathed cable.

010 Nonmetallic-sheathed cable.

(1) The building classification, for subsections (2), (3), and (4) of this section, will be as determined by the building official. For the purposes of this section, Type III, IV-HT and V may be as defined in the International Building Code adopted in the state of Washington. The installer must provide the inspector documentation substantiating the type of building construction and finish material rating(s) prior to any electrical inspection.

(2) This section replaces NEC® 334.10(2). In multifamily dwellings, Type NM, Type NMC, and Type NMS cable(s) may be used in structures of Types III, IV-HT, and V construction except as prohibited in NEC® 334.12.

(3) This section replaces NEC® 334.10(3). In all other structures, Type NM, Type NMC, and Type NMS cable(s) may be used in structures of Types III, IV-HT, and V construction except as prohibited in NEC® 334.12. All cable(s) must be concealed within walls, floors, or ceilings that provide a thermal barrier of material that has at least a 15- minute finish rating as identified in listings of fire-rated assemblies.

(4) This section replaces NEC® 334.10(4). Cable trays in structures of Types III, IV-HT, and V construction, where the cable(s) is identified for the use, except as prohibited in NEC® 334.12.

015 Exposed work.

(5) Where Type NMC cable is installed in shallow chases in plaster, masonry, concrete, adobe or similar material, the cable must be protected against nails or screws by:

(a) A steel plate at least 1/16 inch thick and covered with plaster, adobe, or similar finish; or

(b) Being recessed in a chase at least 2 - 3/4 inches deep, as measured from the finished surface, and covered with plaster, adobe, or similar finish. The cable(s) must be at least 2 1/2 inches from the finished surface.

(6) The requirements for nonmetallic sheathed cable protection in NEC® 334.15(C) do not apply in crawl spaces.

(7) Wet or damp locations prohibited in NEC® 334.12(B)(4) do not include the interior of conduits installed outdoors used for physical protection of NM cables under the following conditions:

(a) Cables emerging from a building interior, attic, or crawl-space remain unbroken until terminated; and

(b) Flexible metal conduits are not used; and

(c) No conduit systems are longer than 10 feet or below grade; and

(d) Conduits are sealed to prevent air movement and are arranged to naturally drain.

  Click here to review the Washington Administrative Code

Did You Like This? Let Us Know With A Like! Thanks!

WAC 296-46B-334 Nonmetallic-sheathed cable.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

When installing nonmetallic sheathed cable in Washington, which of the following is true?

A: Type NMC cable installed in shallow chases in plaster must be protected against nails or screws by a steel plate at least 1/8 inch thick.
B: The installer must provide the inspector documentation substantiating the type of building construction and finish material rating(s) prior to any electrical inspection.
C: The requirements for nonmetallic sheathed cable protection in NEC 334.15(C) apply in crawl spaces.
D: Nonmetallic sheathed cable is not permitted in crawl spaces.
