24.1-06-05-50. (NEC 550) Mobile home parks.

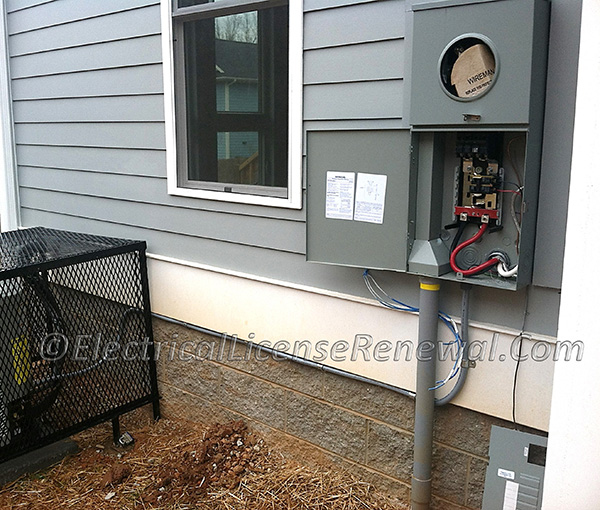

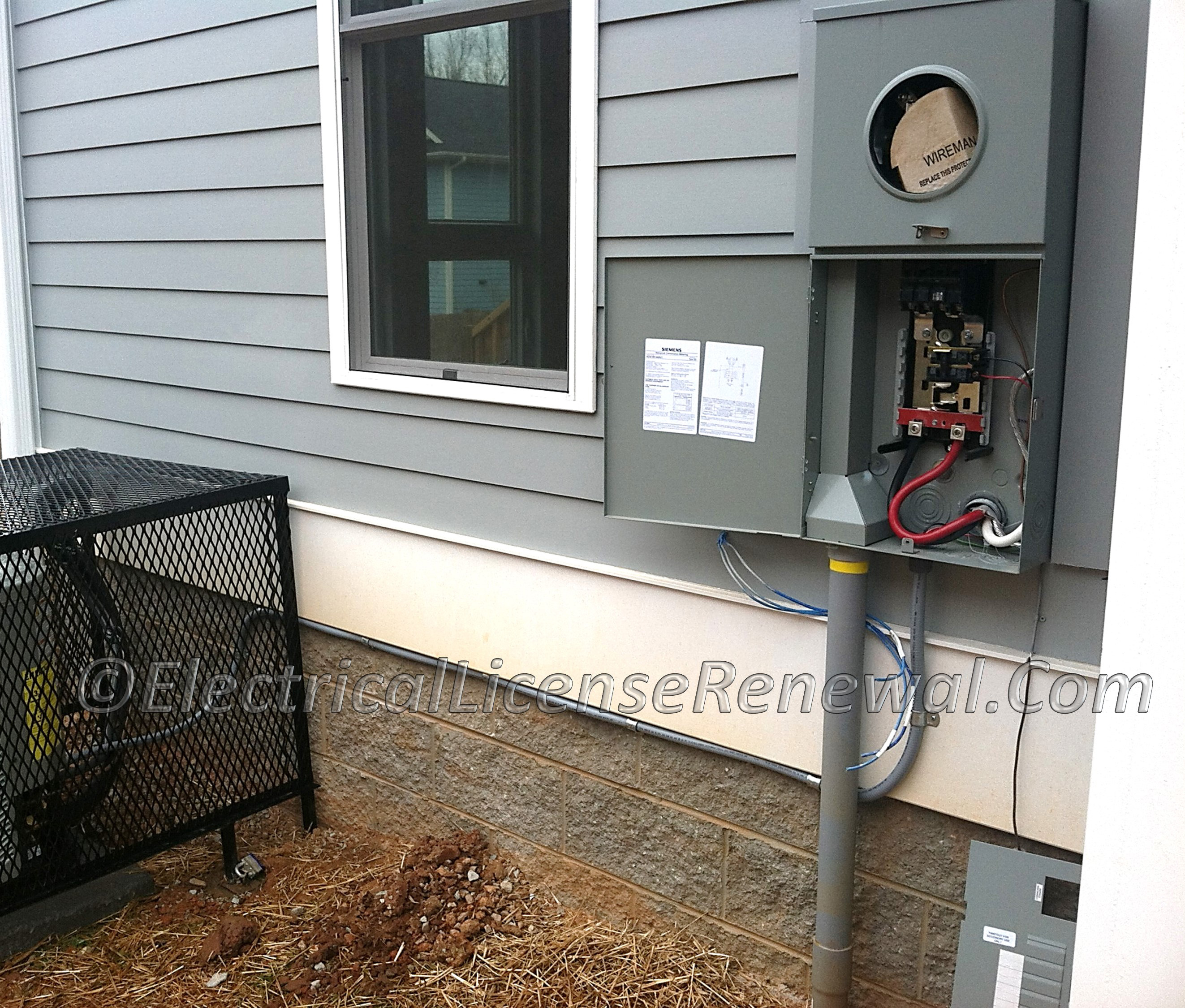

This mobile home has been set on a permanent foundation.
Click to Enlarge
This mobile home has been set on a permanent foundation.

NEC Section 550.32(B) covers service equipment related to mobile homes and states the following:

The manufactured home service equipment shall be permitted to be installed in or on a manufactured home, provided that all of the following conditions are met:

(1) The manufacturer shall include in its written installation instructions information indicating that the home shall be secured in place by an anchoring system or installed on and secured to a permanent foundation.

(2) The installation of the service shall comply with Part I through Part VII of Article 230.

(3) Means shall be provided for the connection of a grounding electrode conductor to the service equipment and routing it outside the structure.

(4) Bonding and grounding of the service shall be in accordance with Part I through Part V of Article 250.

(5) The manufacturer shall include in its written installation instructions one method of grounding the service equipment at the installation site. The instructions shall clearly state that other methods of grounding are found in Article 250.

(6) The minimum size grounding electrode conductor shall be specified in the instructions.

(7) A red warning label shall be mounted on or adjacent to the service equipment. The label shall state the following:

WARNING: DO NOT PROVIDE ELECTRICAL POWER UNTIL THE GROUNDING ELECTRODE(S) IS INSTALLED AND CONNECTED (SEE INSTALLATION INSTRUCTIONS).

Where the service equipment is not installed in or on the unit, the installation shall comply with the other provisions of this section.

North Dakota has amended this code section with additional requirements. Refer to the Laws, Rules and Wiring Standards of North Dakota for additional rules pertaining to mobile home parks.

Did You Like This? Let Us Know With A Like! Thanks!

24.1-06-05-50. (NEC 550) Mobile home parks.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

In North Dakota, which of the following is a condition that must be met in order to install service equipment on a mobile home?

A: The mobile home must be located in a mobile home park.
B: The mobile home must be located on property owned by the homeowner and not in a mobile home park.
C: The mobile home must be set on blocks.
D: The service equipment must be rated not greater than 60 amps.
