24.1-06-02-40. (NEC 240) Overcurrent protection.

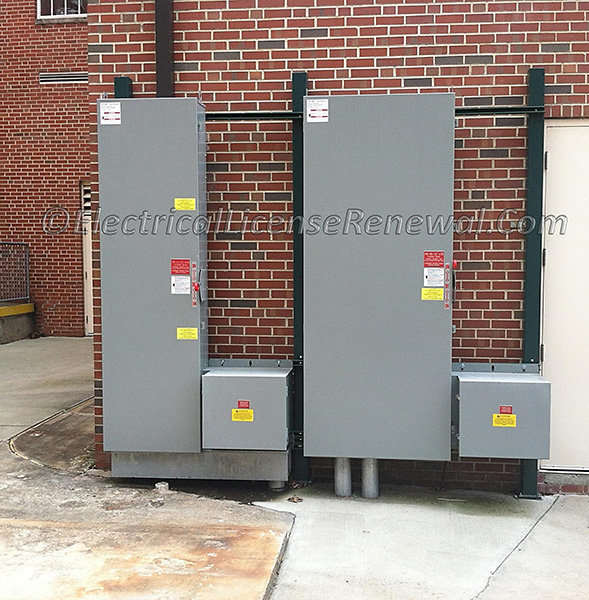

Large switches with overcurrent devices are often installed close to the ground in order to ensure that the switch handle is reachable.
Click to Enlarge

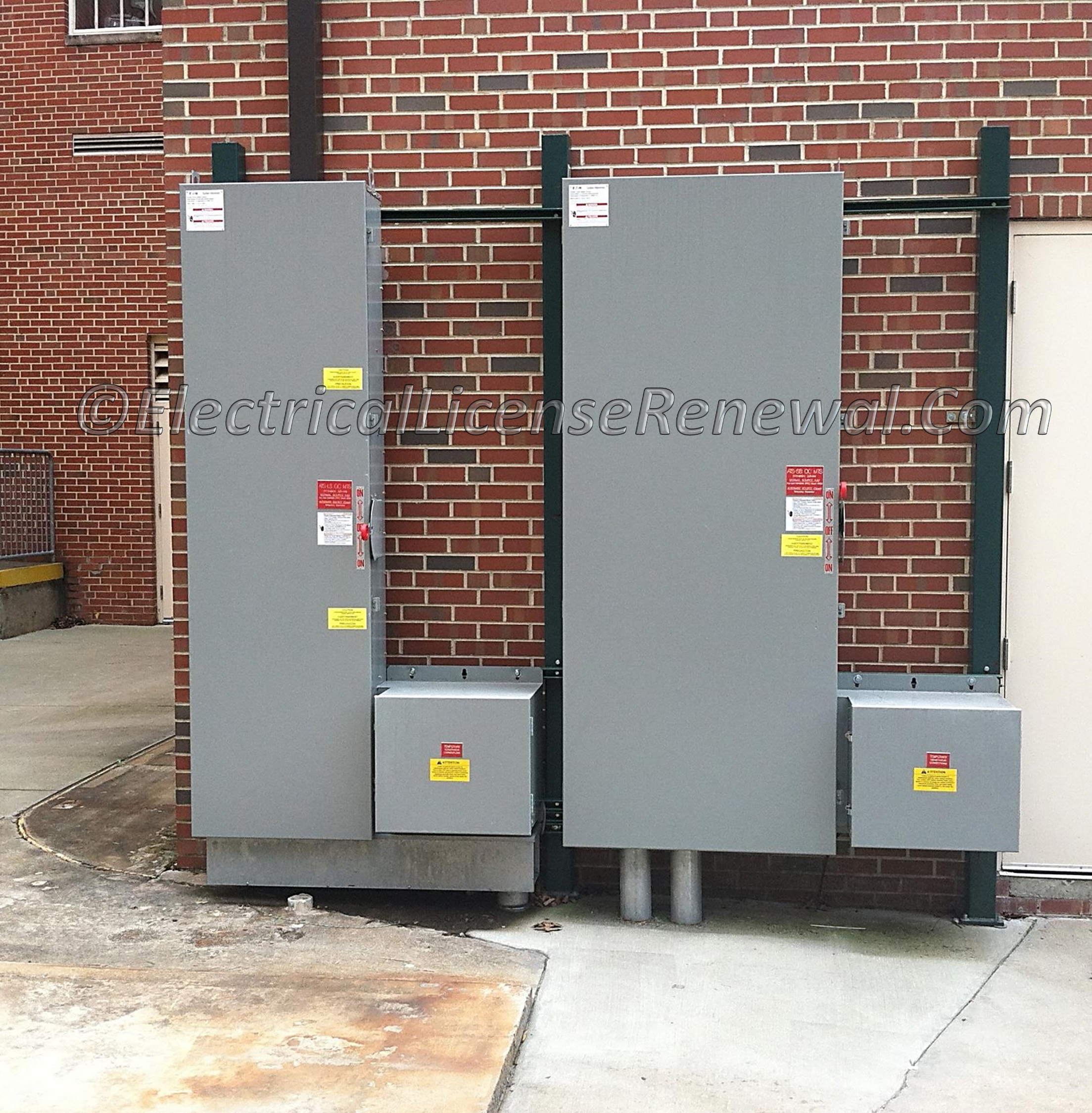

Large switches with overcurrent devices are often installed close to the ground in order to ensure that the switch handle is reachable.

The NEC® has maximum height requirements for the switch handle of an overcurrent device but has no specific requirement on the minimum height to the bottom of the switch enclosure. The general rule in NEC® Section 240.24(A), without applying the exceptions, is that switches containing fuses and circuit breakers must be readily accessible and installed so that the center of the grip of the operating handle of the switch or circuit breaker, when in its highest position, is not more than 6 ft 7 in. above the floor or working platform.

For large switches like in the image, mounting the switch as close as possible to grade allows the switch handle to still be reachable.

In North Dakota, exterior overcurrent devices shall be located at a height of at least two feet above grade level to the bottom of the enclosure.

Refer to the Laws, Rules and Wiring Standards of North Dakota for exceptions to the rules mentioned above.

Did You Like This? Let Us Know With A Like! Thanks!

24.1-06-02-40. (NEC 240) Overcurrent protection.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

In North Dakota, what would allow an exterior switch enclosure to be mounted less than 2 feet above grade?

A: If raising the switch would exceed the height requirements of NEC 240.24(A).
B: If the switch enclosure was NEMA 3R.
C: If the switch enclosure was listed as dust tight.
D: If the switch enclosure was provided with additional protection from physical damage.
