OESC 210.63 Heating, Air Conditioning, and Refrigeration Equipment Outlet.

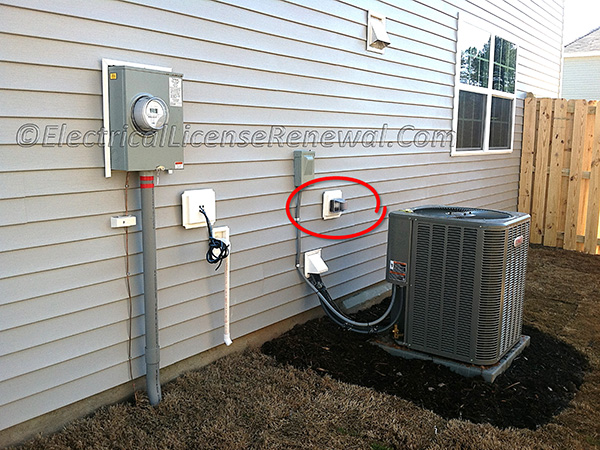

Newer installations will have the required service receptacle. Replacements of existing HVAC equipment on an older home may not.
Click to Enlarge
Newer installations will have the required service receptacle. Replacements of existing HVAC equipment on an older home may not.

NEC Section 210.63 states the following:

A 125-volt, single-phase, 15- or 20-ampere-rated receptacle outlet shall be installed at an accessible location for the servicing of heating, air-conditioning, and refrigeration equipment. The receptacle shall be located on the same level and within 7.5 m (25 ft) of the heating, air-conditioning, and refrigeration equipment. The receptacle outlet shall not be connected to the load side of the equipment disconnecting means.

Exception: A receptacle outlet shall not be required at one- and two-family dwellings for the service of evaporative coolers.

Oregon’s amendment to this section adds another exception as follows:

Exception No. 1: A receptacle outlet shall not be required at one- and two-family dwellings for the service of evaporative coolers.

Exception No. 2: An additional receptacle outlet shall not be required to be installed when replacing existing HVAC equipment if a receptacle outlet is located on the same level and within 75 feet.

Oregon amendments to the 2020 NEC® are located in “Table 1-E” of the Oregon Electrical Specialty Code (OESC) which can be seen using the following link or the OESC PDF file located near the bottom of the screen: https://www.oregon.gov/bcd/codes-stand/Documents/21oesc-table1-e-2021April.pdf

  Click here to review the OESC

Did You Like This? Let Us Know With A Like! Thanks!

OESC 210.63 Heating, Air Conditioning, and Refrigeration Equipment Outlet.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

Which of the following is true when replacing existing HVAC equipment at a location where there is no maintenance receptacle within 25 feet of the existing unit?

A: A new maintenance receptacle can be installed adjacent to the HVAC unit and connected to the load side of the HVAC unit disconnecting means.
B: An additional receptacle outlet is not required to be installed when replacing existing HVAC equipment if a receptacle outlet is located on the same level and within 75 ft.
C: A maintenance receptacle is not required if only replacing an existing unit.
D: A maintenance receptacle must be installed within 25 ft. of a new dwelling unit evaporative cooler.
