725.135 Installation of Class 2, Class 3, and PLTC Cables.

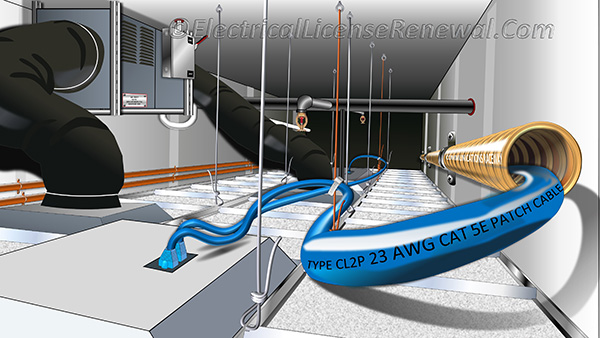

Here is an example of a type CL2P cable installed in a communications raceway to supply an LED luminaire in a POE (power over ethernet) application.
Click to Enlarge
Here is an example of a type CL2P cable installed in a communications raceway to supply an LED luminaire in a POE (power over ethernet) application.

Code Change Summary: A new section was added to address the proper installation of Class 2, Class 3, and PLTC Cables.

The new code section contains some of the same language that was previously found in 725.154 but now allows communications raceways that were previously only permitted in Article 770 for fiber optic cables and Chapter 8 for communications systems.

If communications raceways are permitted for limited energy installations such as fiber optic cables or communications cables, then it makes sense to also allow communications raceways for specific remote control, signaling, and power limited circuits mentioned in 725.135.

Below is a preview of the NEC®.  See the actual NEC® text at NFPA.ORG for the complete code section. Once there, click on the “free access” tab and select the applicable year of NFPA 70 (National Electrical code).

2014 Code Language:

725.135 Installation of Class 2, Class 3, and PLTC Cables. Installation of Class 2, Class 3, and PLTC cables shall comply with 725.135(A) through (M).

(A) Listing. Class 2, Class 3, and PLTC cables installed in buildings shall be listed.

(D) Risers — Cables in Vertical Runs. The following cables shall be permitted in vertical runs penetrating one or more floors and in vertical runs in a shaft:

(1) Types CL2P, CL3P, CL2R, and CL3R cables.

(2) Types CL2P, CL3P, CL2R, and CL3R cables installed in the following:

  1. Plenum communications raceways.
  2. Plenum cable routing assemblies.
  3. Riser communications raceways.
  4. Riser cable routing assemblies.

Informational Note: See 300.21 for firestop requirements for floor penetrations.

(H) Cable Trays. Cables installed in cable trays outdoors shall be Type PLTC. The following cables shall be permitted to be supported by cable trays in buildings:

(1) Types CM CL2P, CL3P, CL2R, CL3R, CL2, CL3, and PLTC cables.

(2) Types CL2P, CL3P, CL2R, CL3R, CL2, CL3, and PLTC cables installed in the following:

  1. Plenum communications raceways.
  2. Riser communications raceways.
  3. General-purpose communications raceways.

Did You Like This? Let Us Know With A Like! Thanks!

725.135 Installation of Class 2, Class 3, and PLTC Cables.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

Which of the following is true of PLTC cables installed in buildings?

A: They are required to be plenum rated.
B: They must be listed.
C: They are not permitted to be used in a cable tray.
D: PLTC stands for Plenum Rated Tray Cable.
