NFPA 70E Table 130.7(C)(15)(c) Protective Clothing and Personal Protective Equipment (PPE).

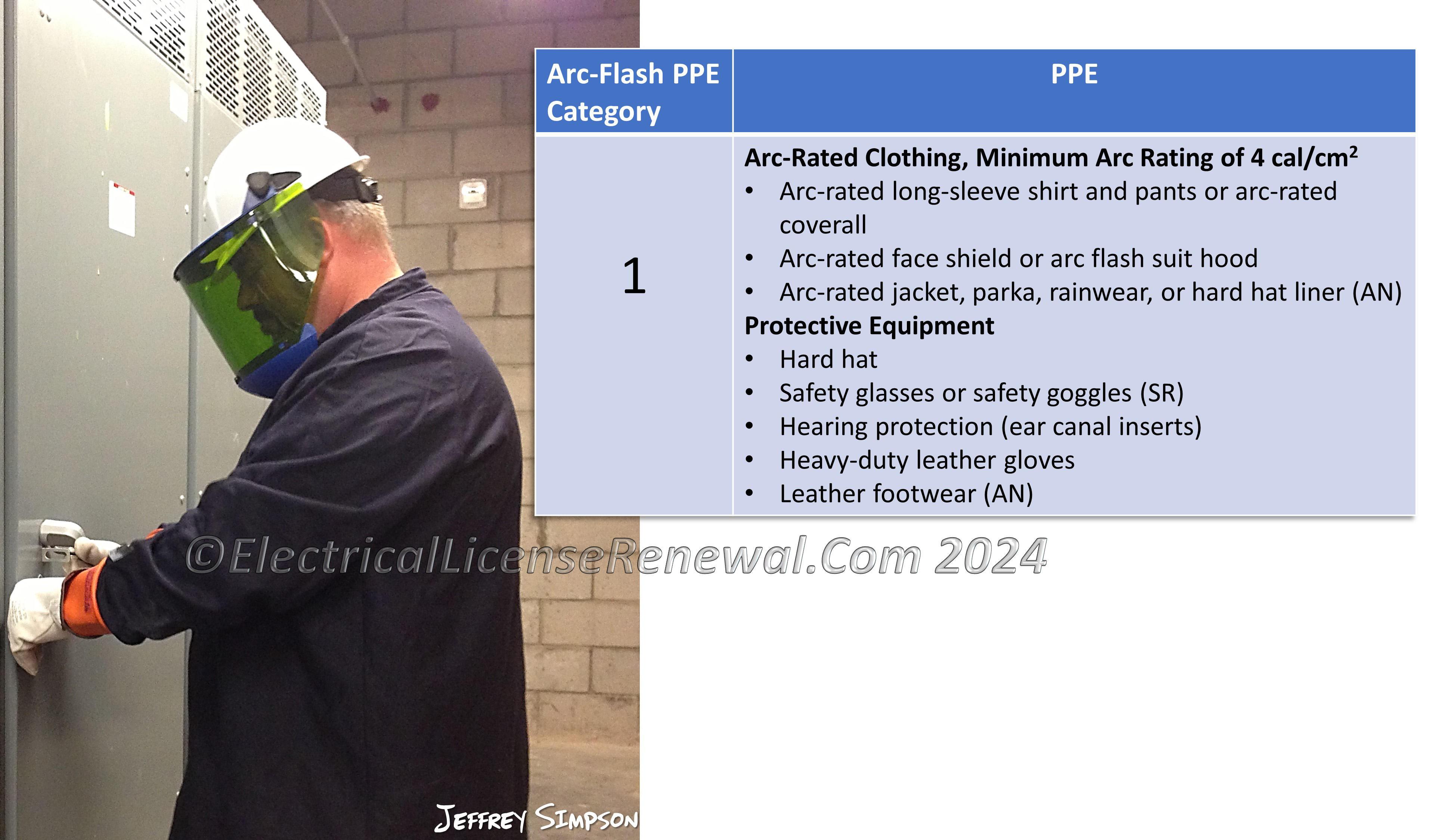

The worker suits up in category 1 PPE before opening the gear to perform thermography within the restricted approach boundary. Which required items are clearly missing from the workers PPE selection?
Click to Enlarge
The worker suits up in category 1 PPE before opening the gear to perform thermography within the restricted approach boundary. Which required items are clearly missing from the workers PPE selection?

Once it has been determined that arc-flash PPE is needed for the specific task, the correct level or category of PPE must be selected.

Table 130.7(C)(15)(c) is used to determine the required PPE. Table 130.7(C)(15)(c) shows the requirements for PPE based on arc flash PPE categories 1 through 4. The clothing and equipment shown in Table 130.7(C)(15)(c) must be used when working inside the arc flash boundary.

Below is a sample of NFPA 70E. For the complete section, see the actual NFPA 70E text at NFPA.ORG. Once there, click on the free access link to NFPA 70E.

130.7(C)(15)(c) Protective Clothing and Personal Protective Equipment (PPE). Once the arc flash PPE category has been identified from Table 130.7(C)(15)(a) or Table 130.7(C)(15)(b), Table 130.7(C)(15)(c) shall be used to determine the required PPE. Table 130.7(C)(15)(c) lists the requirements for PPE based on arc flash PPE categories 1 through 4. This clothing and equipment shall be used when working within the arc flash boundary. The use of PPE other than or in addition to that listed shall be permitted provided it meets 130.7(C)(7).

Did You Like This? Let Us Know With A Like! Thanks!

NFPA 70E Table 130.7(C)(15)(c) Protective Clothing and Personal Protective Equipment (PPE).

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

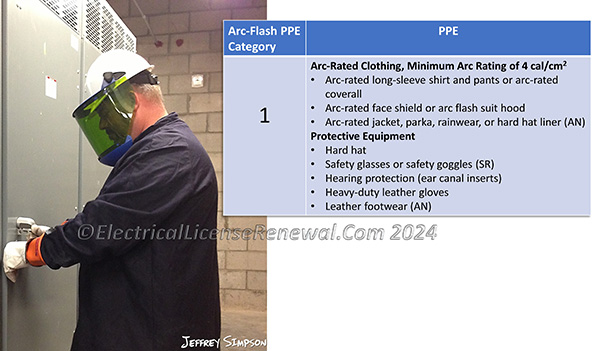

Refer to the image:

The worker suits up in category 1 PPE before opening the gear to perform thermography within the restricted approach boundary. Which required items are clearly missing from the workers PPE selection?

A: Arc-rated flash suit hood.
B: Ear canal inserts and safety glasses.
C: Balaclava.
D: Arc-rated hard hat.
