411.4 Listing Required.

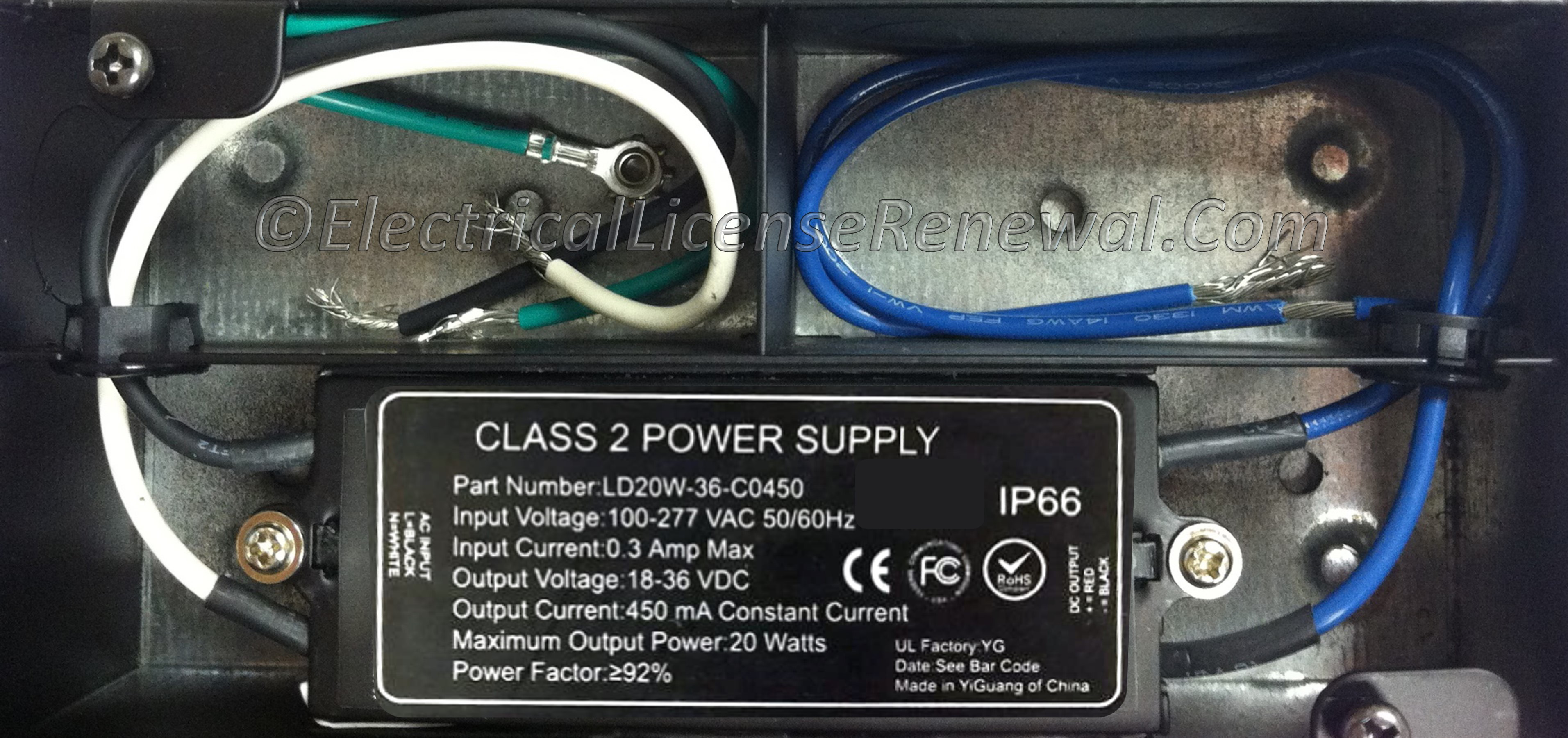

Although this power supply is marked Class 2, there is another problem. Can you identify the code violation?
Click to Enlarge
Although this power supply is marked Class 2, there is another problem. Can you identify the code violation?

Code Change Summary: Revisions make it clear that Class 2 power sources and lighting equipment connected to a Class 2 power source must be listed.

This code change was developed by a subgroup of the NEC® DC Task Force appointed by the Technical Correlating Committee.

For many tears, Article 411 has been the go-to place for requirements on items such as low voltage landscape lighting. Newer technologies such as LED lighting are becoming more and more common. Many new homes have low voltage, under-cabinet lighting installed in the kitchen. These low voltage lighting systems are generally supplied by a Class 2 power source.

Having a new listing requirement for low voltage lighting equipment and Class 2 power supplies in 411.4 provides an additional informational resource and places the responsibility of verifying safety of the product in the hands of the nationally recognized testing laboratories.

A common inspection issue with low voltage under-cabinet lighting is determining if the power source installed by the electrician is actually a Class 2 power supply. If it is, then some of the small and discrete wiring cables listed in 725.179 can be used for a clean looking installation with minimal exposed wiring.

In the product listing requirements found in the UL White book for Class 2 and 3 power supplies, it is noted that Class 2 and 3 power supplies will be marked “Class 2 or Class 3”. If this marking is not present, then the power supply is by default a Class 1 power supply or is not listed. If the power supply is Class 1, then only the bulky wiring methods mentioned in Chapter 3 can be used. A UL listed Class 2 power supply is required to bear the UL listing mark on the product.

References used for the above commentary:

UL White book product category XOKV, NEC® 411.5(A), 725.46, 725.130(A), 725.130(B), 725.179.

Below is a preview of the NEC®.  See the actual NEC® text at NFPA.ORG for the complete code section. Once there, click on the “free access” tab and select the applicable year of NFPA 70 (National Electrical code).

2011 Code Language:

411.3 Listing Required. Lighting systems operating at 30 volts or less shall comply with 411.3(A) or 411.3(B).

2014 Code Language:

411.4 Listing Required. Lighting systems operating at 30 volts or less shall comply with 411.4(A) or 411.4(B). Class 2 power sources and lighting equipment connected to Class 2 power sources shall be listed.

Did You Like This? Let Us Know With A Like! Thanks!

411.4 Listing Required.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

Which of the following is true for a lighting system operating at 24-volts?

A: The Class 2 power supply and the lighting equipment fed from it must be listed.
B: Only the Class 2 power supply must be listed.
C: Only the lighting equipment fed from the Class 2 power supply must be listed.
D: Listing is NOT required for the lighting system.
