OESC 400.12 Uses Not Permitted.

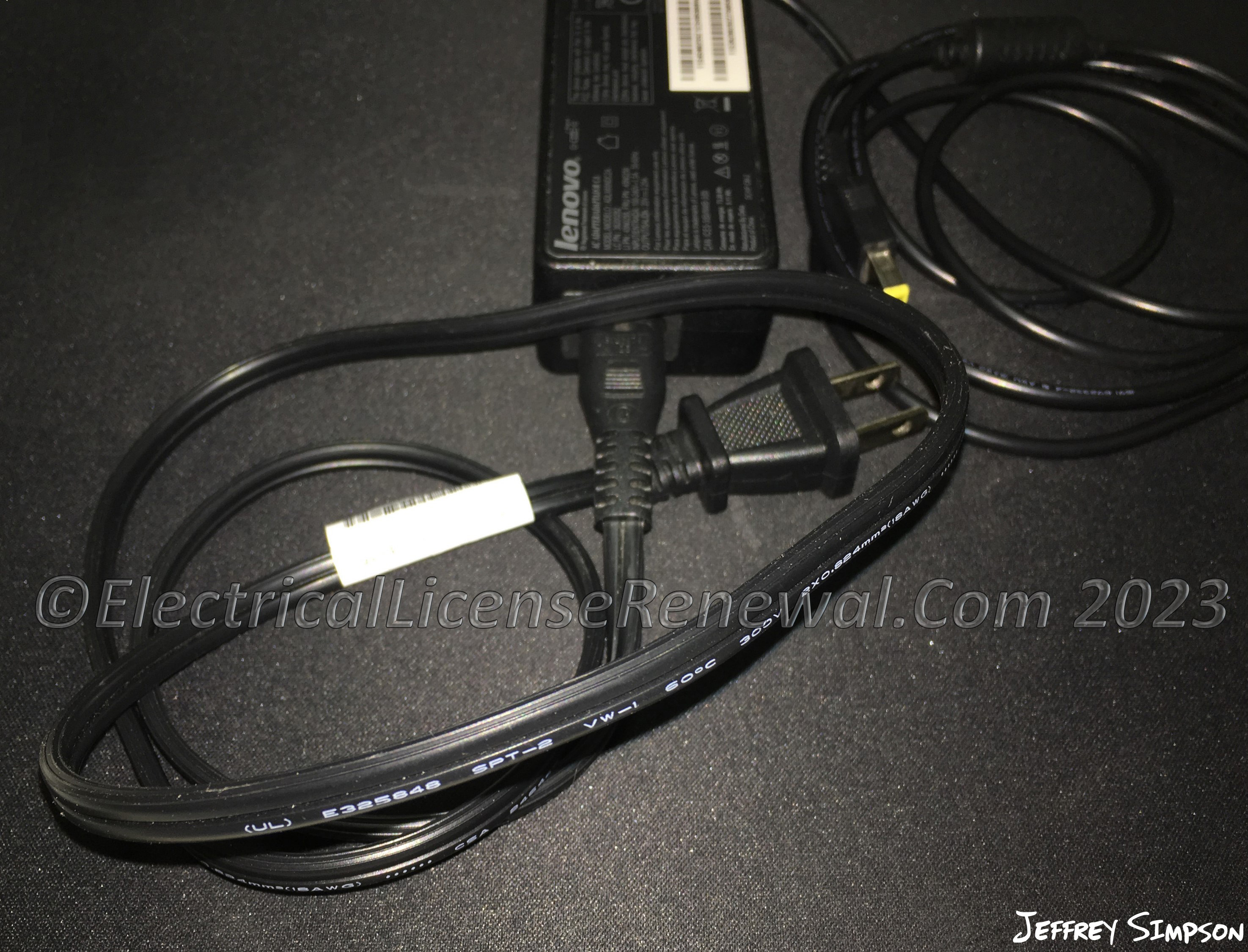

In Oregon, a power supply cord can be installed above a suspended ceiling.
Click to Enlarge
In Oregon, a power supply cord can be installed above a suspended ceiling.

NEC Section 400.12 covers all things not permitted for flexible cords or cables. Line item 5 does not allow a flexible cord or cable to be installed where concealed by walls, floors, or ceilings or located above suspended or dropped ceilings. In Oregon, the code language for line item 5 was amended to read as follows:

Exception No. 1 to (5): Flexible cord and flexible cable shall be permitted if contained within an enclosure for use in other Spaces Used for Environmental Air as permitted by 300.22(C)(3).

Exception No. 2 to (5): In other than spaces used for environmental air, cord sets and power-supply cords shall be permitted above accessible suspended or dropped ceilings, if part of a listed assembly, other than a luminaire, and the cord length does not exceed 1.8m (6 ft).

Oregon amendments to the 2023 NEC® are located in “Table 1-E” of the Oregon Electrical Specialty Code (OESC) which can be seen using the following link or the OESC PDF file located near the bottom of the screen: 2023 OESC

  Click here to view the OESC

Did You Like This?   Follow us on Facebook!

Help Us Keep Our Knowledge Free!

Electrical License Renewal Facebook Logo

OESC 400.12 Uses Not Permitted.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

In Oregon, which of the following is true regarding the installation of a power supply cord above a suspended ceiling?

A: A 6 foot or less power supply cord that is part of a listed assembly is permitted above a suspended ceiling, as along as the space is not used for environmental air.
B: Any type of listed power supply cord is permitted to be exposed within a plenum ceiling.
C: A 7 foot power supply cord that is part of a listed assembly is permitted above a suspended ceiling.
D: A 4 foot power supply cord that supplies a luminaire is permitted above a suspended ceiling.
