350.42 Couplings and Connectors.
Code Change Summary: Language was added to address the proper use of Liquidtight Flexible Metal Conduit fittings.
As strange as it sounds, installers out there using PVC fittings on Liquidtight Flexible Metal Conduit (LFMC) created the need for a code change to provide further clarification.

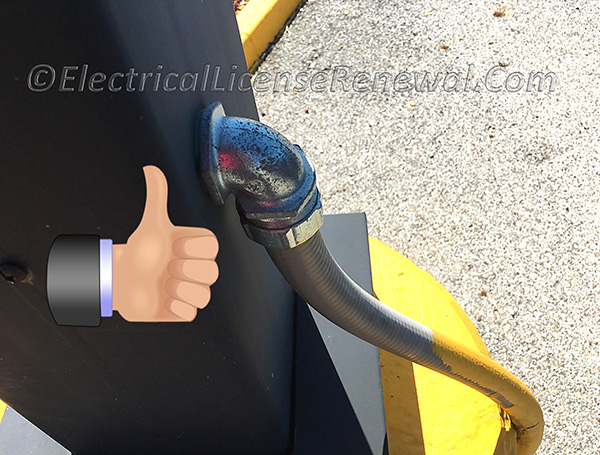

NEC Section 350.6 already had language requiring LFMC and associated fittings to be listed but now, section 350.42 provides additional requirements. In the 2014 NEC®, “only fittings listed for use with LFMC shall be used” with LFMC.
As well, a new sentence was added stating “straight LFMC fittings shall be permitted for direct burial where marked”. This aligns with existing code language in 356.42 for Liquidtight Flexible Nonmetallic Conduit (LFNC),
Below is a preview of the NEC®. See the actual NEC® text at NFPA.ORG for the complete code section. Once there, click on the “free access” tab and select the applicable year of NFPA 70 (National Electrical code).
2011 Code language:
350.42 Couplings and Connectors. Angle connectors shall not be concealed.
2014 Code Language:
350.42 Couplings and Connectors. Only fittings listed for use with LFMC shall be used. Angle connectors shall not be concealed. Straight LFMC fittings shall be permitted for direct burial where marked.
Did You Like This? Let Us Know With A Like! Thanks!
350.42 Couplings and Connectors.
Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:Which of the following is true when installing LFMC?
