24.1-06-02-30. (NEC 230) Services.

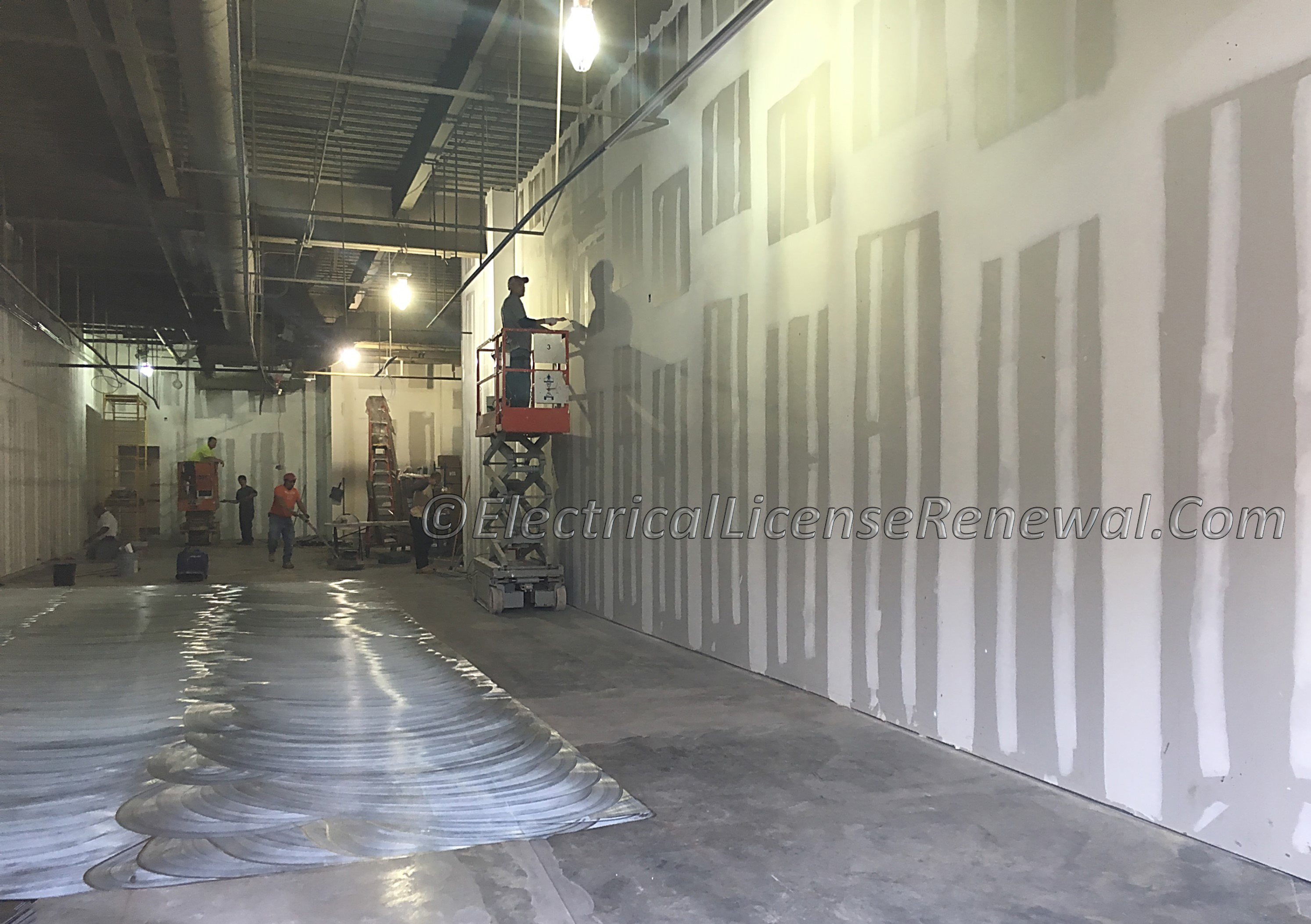

Notice that the demising wall between adjoining occupancies is framed clear to the under-side of the roof deck. This 2-hour fire rated wall separates the two occupancies and according to the Building Code, creates two separate occupancies altogether.
Click to Enlarge
Notice that the demising wall between adjoining occupancies is framed clear to the under-side of the roof deck. This 2-hour fire rated wall separates the two occupancies and according to the Building Code, creates two separate occupancies altogether.

NEC 230.2 states that a building or other structure served shall be supplied by only one electric service unless permitted in 230.2(A) through (D).

 It often becomes difficult to understand what is considered a single building when determining how many services can be installed. Often, a large building is sectioned off and separated by several fire rated demising walls. In Article 100, the NEC® defines a building as “a structure that stands alone or that is separated from adjoining structures by fire walls”.

 Refer to the Laws, Rules and Wiring Standards of North Dakota for additional rules pertaining to house panels not covered in the above commentary.

Did You Like This? Let Us Know With A Like! Thanks!

24.1-06-02-30. (NEC 230) Services.

Below is a Real Question from our Electrical Continuing Education Courses for Electrical License Renewal:

For the purpose of separating services within one building, in North Dakota, which of the following is true?

A: Each portion of a building separated by a smoke partition shall be considered a separate building.
B: Each portion of a building separated by a smoke barrier shall be considered a separate building.
C: Each portion of a building separated by one or more fire walls must be considered a separate building.
D: Each portion of a building separated by a fire door shall be considered a separate building.
